Incoloy 925 Pipe
- Commodity name： Incoloy 925 Pipe
Keyword:
Incoloy 925 Pipe
- PRODUCT DESCRIPTION
-

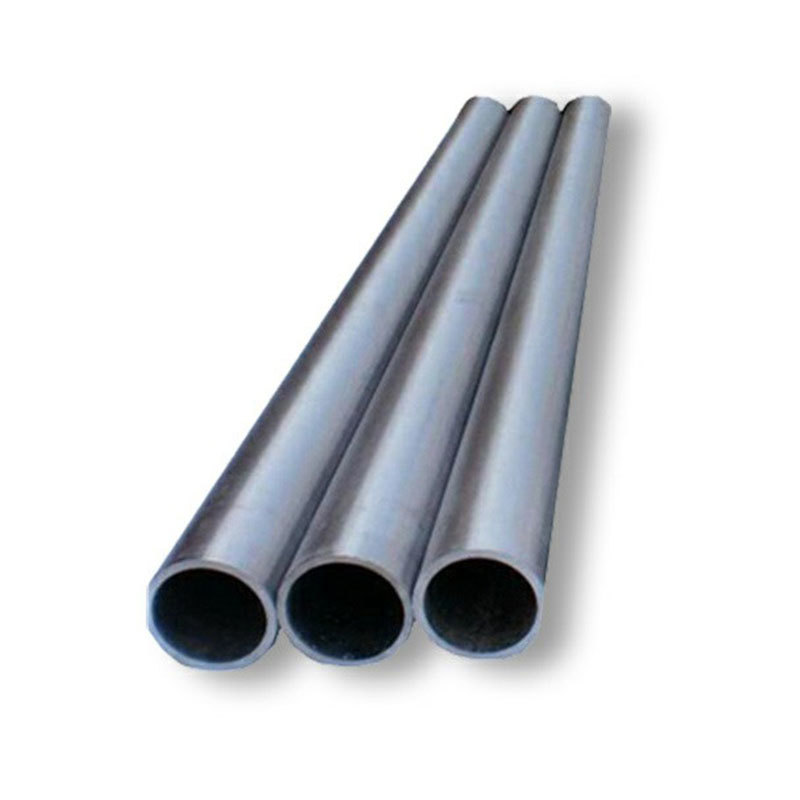

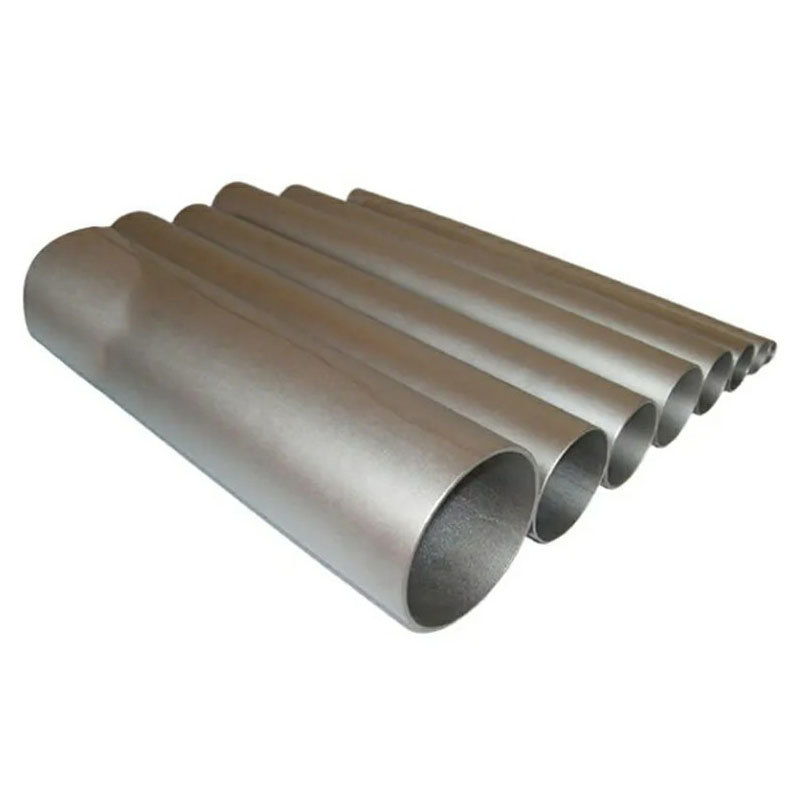

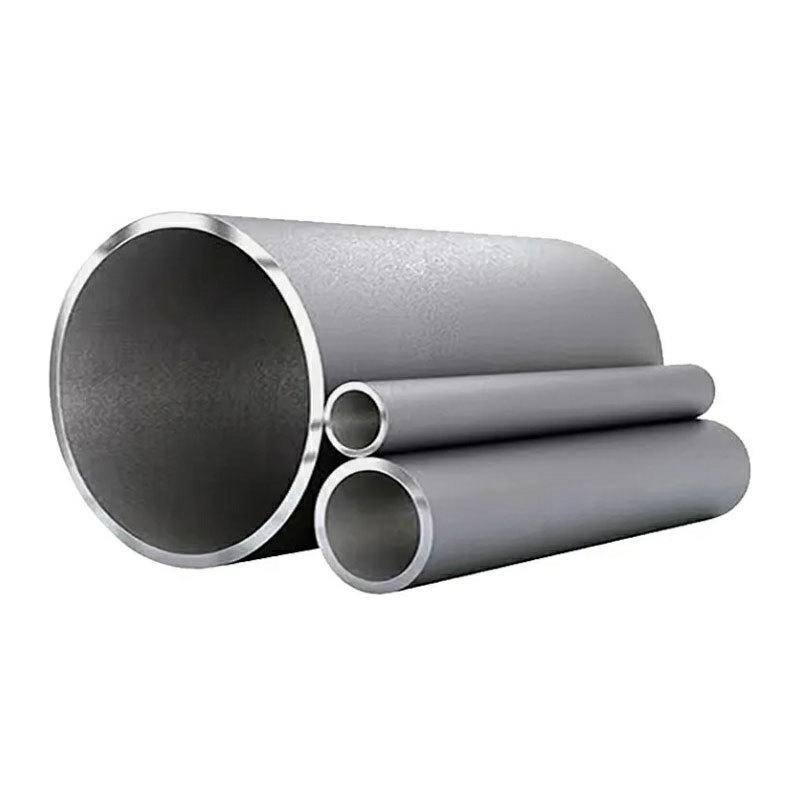

Incoloy 925 Pipe
Incoloy 925 pipe is made of a nickel-based high-temperature alloy that is widely used in industrial fields under various environments due to its excellent corrosion resistance and high-temperature strength.
Incoloy 925 Pipe Description
Incoloy 925 alloy is mainly composed of nickel, chromium, iron, as well as a certain amount of aluminum, titanium and other elements. This alloy can maintain stable performance in oxidizing and reducing environments due to excellent corrosion resistance. In addition, Incoloy 925 also has good high-temperature strength and creep properties, and can maintain good mechanical properties in high-temperature environments. Other excellent properties include excellent welding and manufacturing processability. Besides, Incoloy 925 pipe can resist oxidation and hot corrosion in high-temperature oxidizing environments. One thing to note is Incoloy 925 pipe shows good resistance to stress corrosion cracking in chlorine-containing media and is suitable for seawater environments and chemical process applications containing chlorides.
Scope of Application
This superalloy is used in a variety of industries, such as aerospace, chemical processing, marine engineering, pollution control equipment and nuclear reactors.
Product Parameters
Product Name Incoloy 925 Pipe Outer Diameter Round Pipe 4mm-200mm Square Pipe 10*10mm-100*100mm Rectangular Pipe 10*20mm-50*100mm Wall Thickness 0.6mm-6.0mm Length 1-6 meters, Length can be customized Standard ASTM, AISI, JIS, GB, DIN, EN, etc. Surface Black, Bright Polished, Rough Turning, Matt Surface Treatment, No.4, BA, etc. Certificate ISO, SGS, BV Production Technology Hot Rolling, Cold Rolling Chemical Composition
C Al Si P S Ti Cr Mn Fe Ni Cu Nb Mo 0.03 max 0.1 - 0.5 0.5 max 0.03 max 0.03 max 1.9 - 2.4 19.5 - 22.5 1.0 max 22.0 min 42.00-46.00 1.5 - 3.0 0.5 max 2.5 - 3.5 Mechanical Properties
Tensile Strength (ksi) 0.2% Yield Strength (ksi) Elongation% in 2 inches 75 30 30 Physical Performance
Units Temperature in°C Density 7.94 g/cm³ Room Specific Heat 0.11 Kcal/kg.C 21° Melting Range 1357-1385°C - Modulus of Elasticity 196.5 KN/mm² 20° Electrical Resistivity 98.9 µΩ.cm 20° Coefficient of Expansion 14.4 µm/m °C 20° - 100° Thermal Conductivity 11.5 w/m-° K 20°
Product Description
| Type | Alloy Tube/Pipe |
| Length | 1000mm,3000mm, 5800mm, 6000mm,etc |
| Standard | ASTM,AISI,JIS,DIN,EN |
| Application | Construction,Ship,Boiler,Machinery,etc |
| Certification | ISO,SGS,TUV |
| Technique | Cold Rolled/Hot Rolled |
| Quality | Mill Test Certificate supplied with the shipment ,third part inspection is acceptable |
| Hastelloy: Hastelloy B/ -2/B-3/C22/C-4/S/ C276/C-2000/G-35/G-30/X/N/g;etc | |
| Inconel 600/601/602CA/617/625/713/718/738/X-750;ETC | |
| Grade | Incoloy: Incoloy 800/800H/800HT/825/925/926;etc |
| GH: GH2132,GH3030,GH3039,GH3128,GH4180,GH3044,etc | |
| Monel: Monel 400/K500/R405,etc | |
| Nitronic 40/50/60/75/80A/90/A263 ;etc | |
| Specification | Wire: 0.02-6mm /Strip: 0.05*5.0-5.0*250mm /Bar: φ4-800mm;Length 2000-5000mm /Pipe: φ6-273mm;φ1-30mm;Length 1000-8000mm /Sheet: φ0.8-36mm;Width 650-2000mm;Length 800-4500mm |
| Cutting Type | Laser cutting;water-jet cutting;flame cutting |
| Protection | 1. Inter paper available2. PVC protecting film available |
Product parameters
| Product Name | Alloy 200/201 Pipe | |
| Outer Diameter | Round Pipe | 4mm-200mm |
| Square Pipe | 10*10mm-100*100mm | |
| Rectangular Pipe | 10*20mm-50*100mm | |
| Wall Thickness | 0.6mm-6.0mm | |
| Length | 1-6 meters, Length can be customized | |
| Standard | ASTM, AISI, JIS, GB, DIN, EN, etc. | |
| Surface | Black, Bright Polished, Rough Turning, Matt Surface Treatment, No.4, BA, etc. | |
| Certificate | ISO, SGS, BV | |
| Production Technology | Hot Rolling, Cold Rolling | |
